MDB1200WP-CAN
30mm, Waterproof, Brushless, Metal Case, Steel Gear Actuator (7.4V)
Part #: 40147C
$679.99
Maximum of 20 units per part # are available for purchase on our website.
Contact Sales directly to discuss purchases over 20 units:
Actuator Sales
sales@hiteccs.com
| Performance Specifications | |
|---|---|
| Command Protocol |
CAN DroneCAN / UAVCAN v0.0 |
| Operating Voltage (V) |
Min: 6.00
Max: 7.40 |
| Weight (g) | Min: 260.00 |
| Stall Torque (kgf•cm / oz•in) |
Min: 100.0 / 1388.74
Max: 110.0 / 1527.61 |
| No Load Speed (sec/60°) |
Min: 0.22
Max: |
| Running Current (mA) |
Min: 700
Max: |
| Stall Current (mA) |
Min: 4300
Max: |
| Circuit |
Digital |
| Rotation |
Programmable |
| Operating Voltage (V) |
Min: 6.00
Max: 7.40 |
| Torque Range |
Min (KG/CM): 1527.61
Max (N/CM): 1078.72 |
| Max Speed (SEC/60) | 0.18 |
| Physical Specifications | |
|---|---|
| Case Size (mm) | 30.00 |

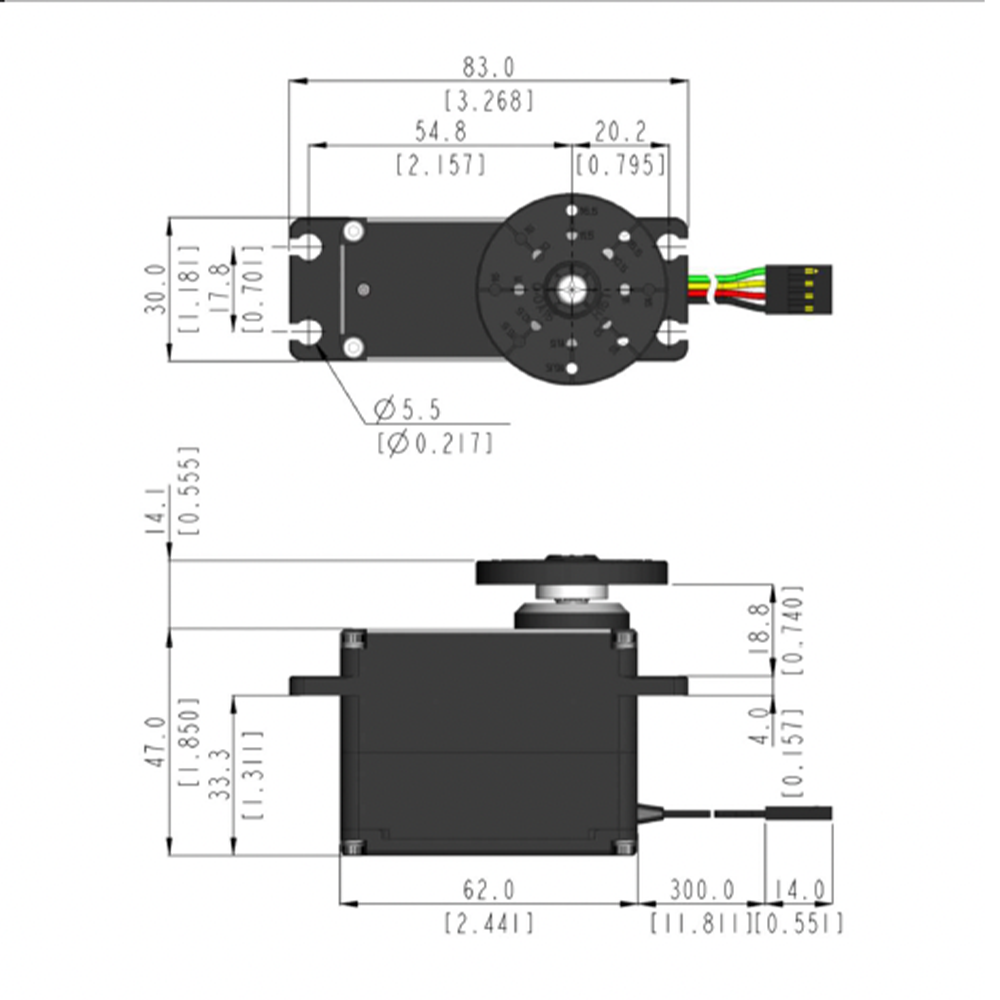

| Dimensions (mm) | 62.0 x 30.0 x 47.0 |
| Weight (g) | 260.00 |
| Motor Type | Brushless |
| Potentiometer |
Magnetic Encoder |
| Gear Material | 5 Hardened Steel Gears |
| Horn Gear Spline | 15T (Ø8) |
| Case Material | Aluminum Alloy |
| IP Rating |
IP67 |
