SR33BL-CAN-Redundant
33mm, Redundant, Maxon Brushless Motors, Waterproof, Steel Gear Actuator with Circular Connectors (24V)
Part #: 34333C
$5500.00
Maximum of 20 units per part # are available for purchase on our website.
Contact Sales directly to discuss purchases over 20 units:
Actuator Sales
sales@hiteccs.com
| Performance Specifications | |
|---|---|
| Command Protocol |
CAN DroneCAN / UAVCAN v0.0 |
| Operating Voltage (V) |
Min: 18.00
Max: 32.00 |
| Weight (g) | Min: 1400.00 |

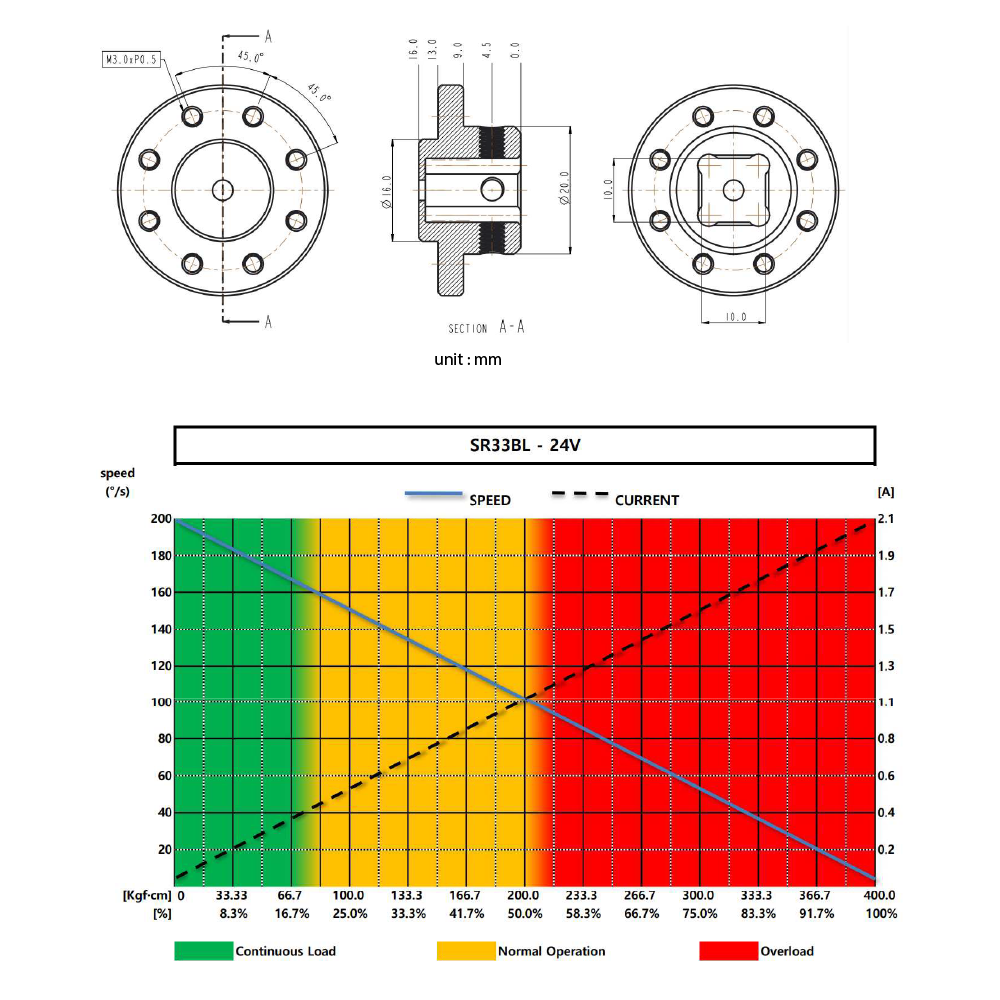

| Stall Torque (kgf•cm / oz•in) |
Min: 5555 @ 24V
Max: 5555 @ 24V |
| No Load Speed (sec/60°) |
Min: 0.30
Max: |
| Running Current (mA) |
Min: 1000
Max: |
| Stall Current (mA) |
Min: 2100
Max: |
| Circuit |
Digital |
| Rotation |
Programmable |
| Operating Voltage (V) |
Min: 18.00
Max: 32.00 |
| Torque Range |
Min (KG/CM): 400.00
Max (N/CM): 3924.00 |
| Max Speed (SEC/60) | 0.30 |
| Physical Specifications | |
|---|---|

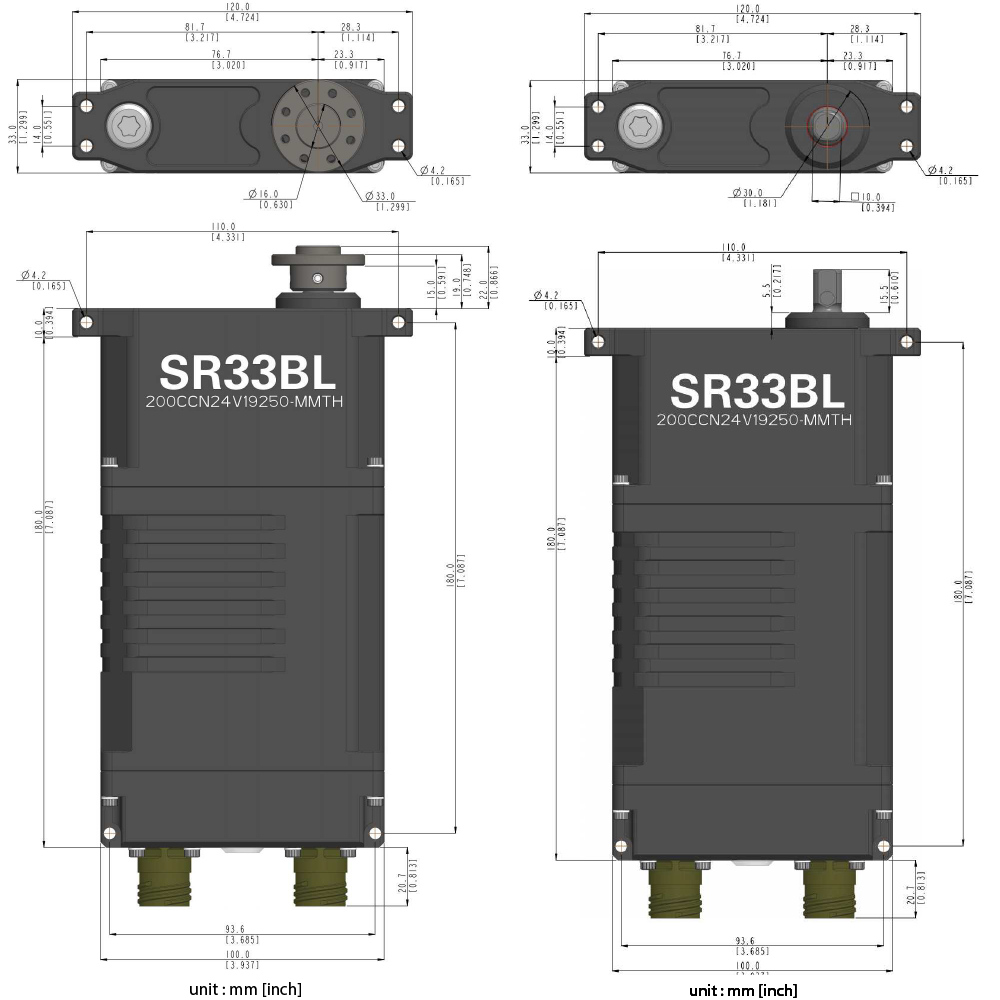

| Case Size (mm) | 33.00 |
| Dimensions (mm) | 100.0 x 33.0 x 195.0 |
| Weight (g) | 1400.00 |
| Motor Type | 2x Maxon Brushless Motors |
| Potentiometer |
Magnetic Encoder |
| Gear Material | 5 Hardened Steel Gears |
| Horn Gear Spline | Square 10 x 10mm |
| Case Material | Rugged Aluminum Alloy With Hardcoat Anodizing |
| IP Rating |
IP68 |
Contact Sales directly for accessories and/or replacement parts:
• Case Set
• Gear Set
• Horn Set
Actuator Sales
sales@hiteccs.com
Standard Programming Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
IMPORTANT INFORMATION > DPC-20 PROGRAMMER
- Hardware Type: PC USB-C to 3-pin (PWM/TTL) and 4-pin (RS485/CAN) interface.
- Capable of configuring and testing HITEC digital servo actuators.
- Compatible with various control methods (PWM, RS485, CAN), offering a seamless transition from legacy DPC-11, DPC-485, and DPC-CAN units.
- Different servo actuator series require dedicated UI programs due to variations in communication protocols.
- Ensure you connect the appropriate power supply to the DPC-20 for the connected servo actuator.
- For servo actuators (5/7 Series, 9 Series, D/MD Series), connect to the 3-pin port on the DPC-20, and connect the power supply to the BAT- and BAT+ pins on the 4-pin port, paying careful attention to polarity.
- DPC-20 Wiring Diagrams are located on the DPC-20 UI HUB DOCUMENTATION.
| DroneCAN Command Protocol | Download |
|---|---|
| Wiki | |
|
Command Protocol Support |
More Information |
| Manual | |
|
CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 Servo Actuator Control Protocol Manual v2.5 (Updated: 03/30/26) |
Download Now |
| Library | |
|
Hitec CAN Servo Register Header (hitec-can-servo-reg-public.h) |
Download Now |
| Configuration App | |
| Download the following app to configure your actuator: CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 Configuration App – Ver. 2021.1.12.1 |
Download Now |
| Firmware | |
| CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 App Firmware | WiKi File Downloads |
| Programming | |
| DPC-20 Programmer Digital Servo Programmer for PWM / RS-485 / CAN Protocols | More Information |
| CAN(2.0A, 2.0B) Command Protocol | Download |
|---|---|
| Wiki | |
|
Command Protocol Support |
More Information |
| Manual | |
|
CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 Servo Actuator Control Protocol Manual v2.5 (Updated: 03/30/26) |
Download Now |
| Library | |
|
Hitec CAN Servo Register Header (hitec-can-servo-reg-public.h) |
Download Now |
| Configuration App | |
| Download the following app to configure your actuator: CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 Configuration App – Ver. 2021.1.12.1 |
Download Now |
| Firmware | |
| CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 App Firmware | WiKi File Downloads |
| Programming | |
| DPC-20 Programmer Digital Servo Programmer for PWM / RS-485 / CAN Protocols | More Information |
