MDB950SW-CAN
20mm, Ultra-Premium, Brushless, Steel Gear Actuator w/Magnetic Encoder (7.4V)
Part #: 45950C
$249.99
| Performance Specifications | |
|---|---|
| Command Protocol |
CAN |
| Operating Voltage (V) |
Min: 4.00
Max: 8.40 |
| Weight (g) | Min: 70.70 |
| Stall Torque (kgf•cm / oz•in) |
Min: 35.0 / 486.06
Max: 40.0 / 555.5 |
| No Load Speed (sec/60°) |
Min: 0.23
Max: |
| Running Current (mA) |
Min: 350
Max: |
| Stall Current (mA) |
Min: 4200
Max: |
| Circuit |
Digital |
| Rotation |
Programmable |
| Operating Voltage (V) |
Min: 4.00
Max: 8.40 |
| Torque Range |
Min (KG/CM): 40.00
Max (N/CM): 392.27 |
| Max Speed (SEC/60) | 0.14 |
| Physical Specifications | |
|---|---|
| Case Size (mm) | 20.00 |

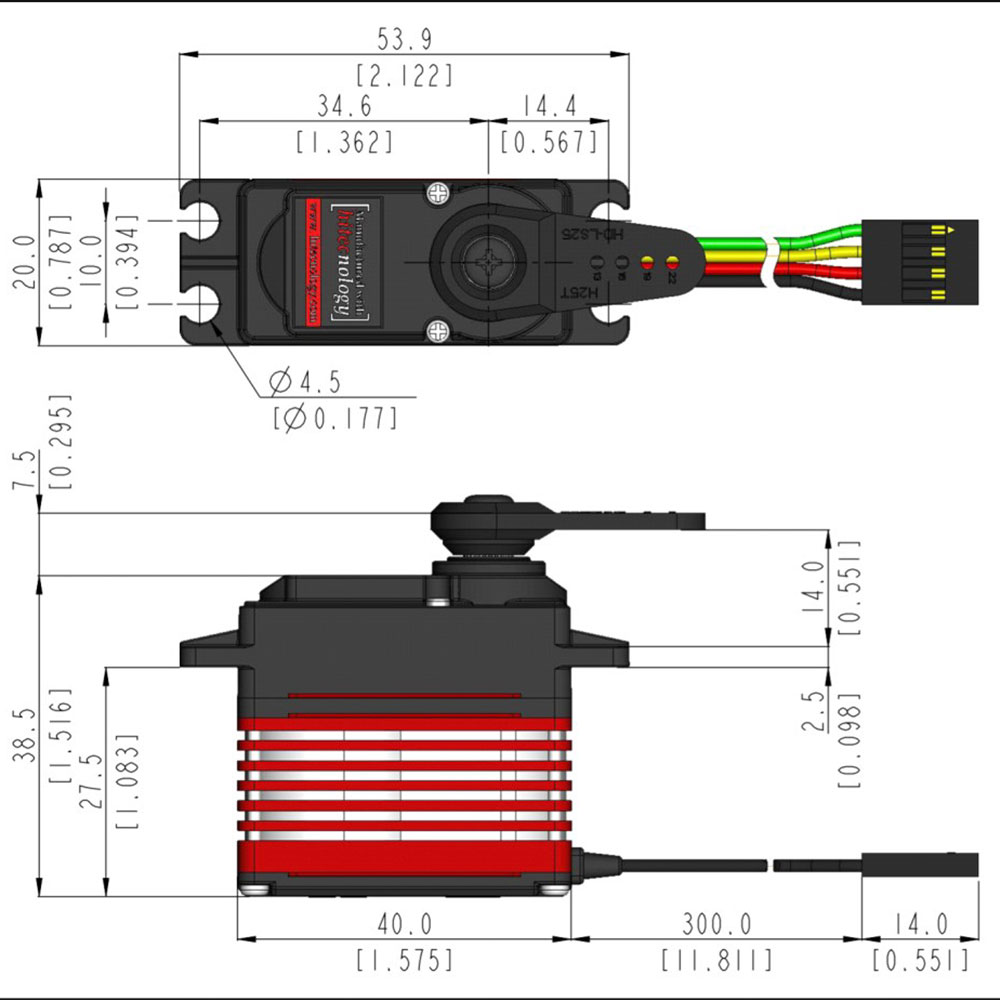

| Dimensions (mm) | 40.0 x 20.0 x 38.5 |
| Weight (g) | 70.70 |
| Motor Type | Brushless |
| Potentiometer |
Magnetic Encoder |
| Gear Material | 1 Metal-Plastic & 3 Hardened Steel |
| Horn Gear Spline | 25T (Ø6) |
| Case Material | Engineer Plastic & Aluminum Heat Sink |
| IP Rating |
IP54 |
Contact Sales directly for accessories and/or replacement parts:
• Case Set
• Gear Set
• Horn Set
Actuator Sales
sales@hiteccs.com
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset
| DroneCAN / UAVCAN v0.0 Command Protocol | Download |
|---|---|
| Wiki | |
|
Command Protocol Support |
More Information |
| Manual | |
|
CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 Servo Actuator Control Protocol Manual v2 (Updated: 06/21/23) |
Download Now |
| Library | |
|
Hitec CAN Servo Register Header (hitec-can-servo-reg-public.h) |
Download Now |
| Configuration App | |
| Download the following app to configure your actuator: CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 Configuration App – Ver. 2021.1.12.1 |
Download Now |
| Firmware | |
| CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 App Firmware Update – Ver. 2021.1.12.1 | Download Now |
| CAN Firmware – Ver. 11.4.2 | Download Now |
| CAN(2.0A, 2.0B) Command Protocol | Download |
|---|---|
| Wiki | |
|
Command Protocol Support |
More Information |
| Manual | |
|
CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 Servo Actuator Control Protocol Manual v2 (Updated: 06/21/23) |
Download Now |
| Library | |
|
Hitec CAN Servo Register Header (hitec-can-servo-reg-public.h) |
Download Now |
| Configuration App | |
| Download the following app to configure your actuator: CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 Configuration App – Ver. 2021.1.12.1 |
Download Now |
| Firmware | |
| CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 App Firmware Update – Ver. 2021.1.12.1 | Download Now |
| CAN Firmware – Ver. 11.4.2 | Download Now |
