MD950TW-RS485
20mm, Ultra-Premium, Coreless, Wide Voltage, Titanium Gear Servo w/Magnetic Encoder
Our ultra-premium MD950TW-RS485 is engineered with an efficient coreless motor and magnetic encoder delivering uncompromised performance and reliability. Operating at a voltage range from 4~8.4 volts, this powerful, titanium gear actuator produces impressive torque and high speeds with 32-bit digital programmability and IP-55 dustproof rating. Utilizing the well-proven RS485 command protocol, the MD950TW-RS485 servo is ideal for industrial applications requiring unbeatable precision, strength, and durability.
Part #: 40950R
$214.99
Maximum of 20 units per part # are available for purchase on our website.
Contact Sales directly to discuss purchases over 20 units:
Actuator Sales
sales@hiteccs.com
(858) 737-9220 x311
| Performance Specifications | |
|---|---|
| Command Protocol |
RS485 |
| Operating Voltage (V) |
Min: 4.80
Max: 7.40 |
| Weight (g) | Min: 68.00 |
| Stall Torque (kgf•cm / oz•in) |
Min: 21.0 / 291.63
Max: 35.0 / 486.05 |
| No Load Speed (sec/60°) |
Min: 0.21
Max: 0.14 |
| Running Current (mA) |
Min: 300
Max: 500 |
| Stall Current (mA) |
Min: 3700
Max: 6200 |
| Circuit |
Digital |
| Rotation |
Programmable |
| Operating Voltage (V) |
Min: 4.80
Max: 7.40 |
| Torque Range |
Min (KG/CM): 35.00
Max (N/CM): 343.25 |
| Max Speed (SEC/60) | 0.14 |
| Physical Specifications | |
|---|---|
| Case Size (mm) | 20.00 |

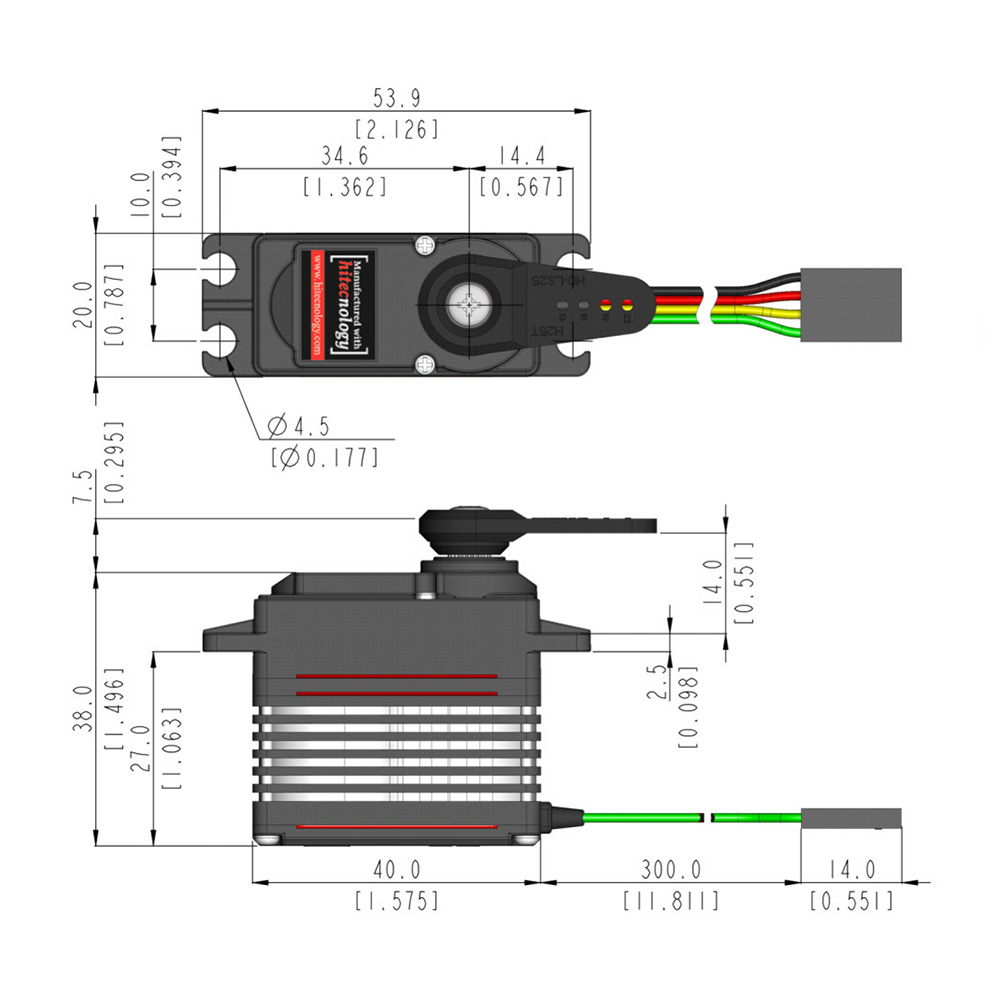

| Dimensions (mm) | 40.0 x 20.0 x 38.0 |
| Weight (g) | 68.00 |
| Motor Type | DC (Coreless Metal Brush) |
| Potentiometer |
Magnetic Encoder |
| Gear Material | 1 Metal-Plastic & 3 Titannium Alloy |
| Horn Gear Spline | H25T (25 Segment Ø6.0) |
| Case Material | Engineering Plastic / Hardened Metal |
| IP Rating |
IP54 |
Contact Sales directly for accessories and/or replacement parts:
• Case Set
• Gear Set
• Horn Set
Actuator Sales
Seth Cohen
seth.cohen@hiteccs.com
(858) 737-9220 x311
General Sales
sales@hiteccs.com
Standard Programming Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Soft Start Rate
- Overload Protection
- Data Save / Load
- Program Reset
IMPORTANT INFORMATION > DPC-20 PROGRAMMER
- Hardware Type: PC USB-C to 3-pin (PWM/TTL) and 4-pin (RS485/CAN) interface.
- Capable of configuring and testing HITEC digital servo actuators.
- Compatible with various control methods (PWM, RS485, CAN), offering a seamless transition from legacy DPC-11, DPC-485, and DPC-CAN units.
- Different servo actuator series require dedicated UI programs due to variations in communication protocols.
- Ensure you connect the appropriate power supply to the DPC-20 for the connected servo actuator.
- For servo actuators (5/7 Series, 9 Series, D/MD Series), connect to the 3-pin port on the DPC-20, and connect the power supply to the BAT- and BAT+ pins on the 4-pin port, paying careful attention to polarity.
- DPC-20 Wiring Diagrams are located on the DPC-20 UI HUB DOCUMENTATION.
Additional downloads can be found on our ACTUATOR RESOURCES page under our Support tab.
Contact Sales directly if you are unable to locate a specific resource download:
Actuator Sales
sales@hiteccs.com
(858) 737-9220 x311
