NEW RELEASE: LINEAR CAN SERIES SERVOS

May 22, 2025 | New Release

LINEAR CAN SERIES SERVOS

Variable Stroke, Variable Gear Ratio, 5mm Lead, DroneCAN / CAN Control, Linear Actuator

12 Options Available

Controlled using CAN 2.0A/B & DroneCAN servo protocol signals, Hitec linear actuators provide optimized motion control for precise and powerful positioning, enhancing real-time communication between various components, promoting inter-operability and scalability. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility.

KEY FEATURES

Wide Operating Voltage (4.0 ~ 8.4 Volts DC)
Programmable CAN / DroneCAN Digital Amplifier (Compatible with Hitec’s DPC-20 Programmer)
5mm Lead Screw

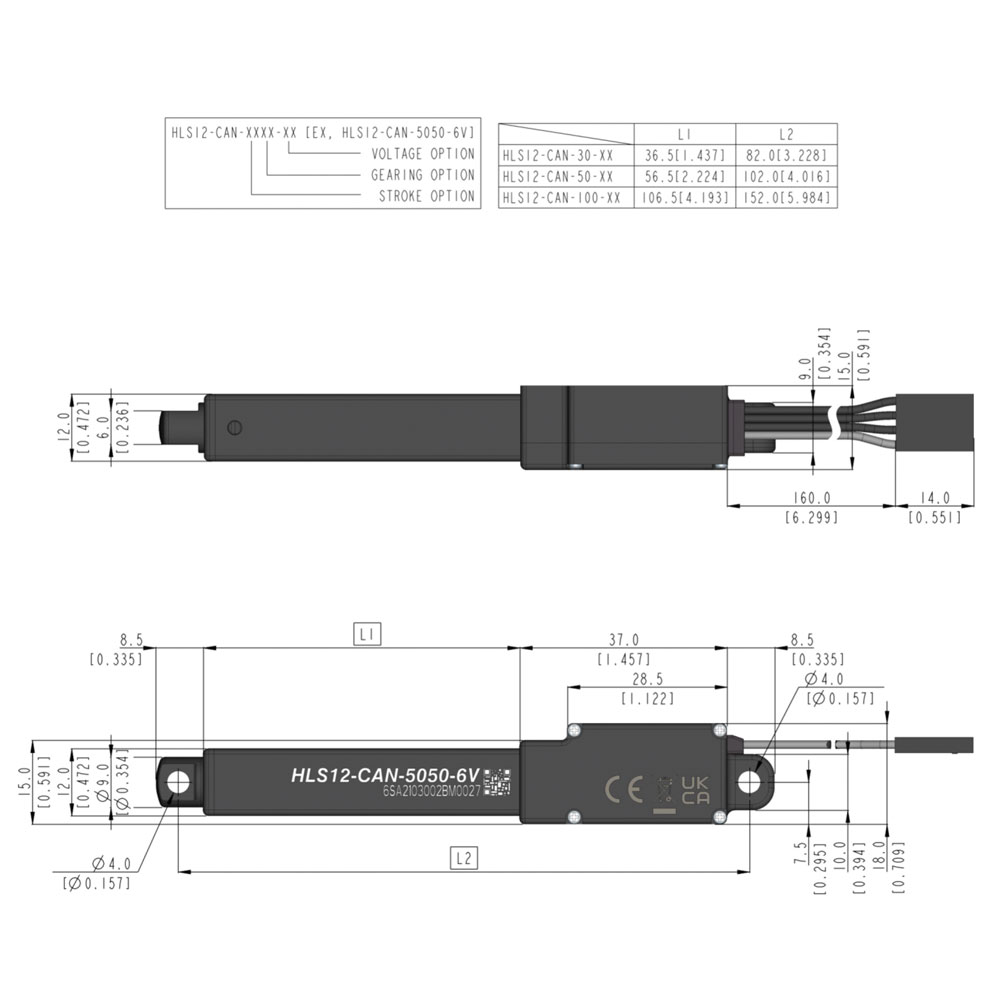

Three Stroke SPEC: 30mm, 50mm and 100mm
Four Gear Ratios: 50:1, 100:1, 210:1 and 380:1
