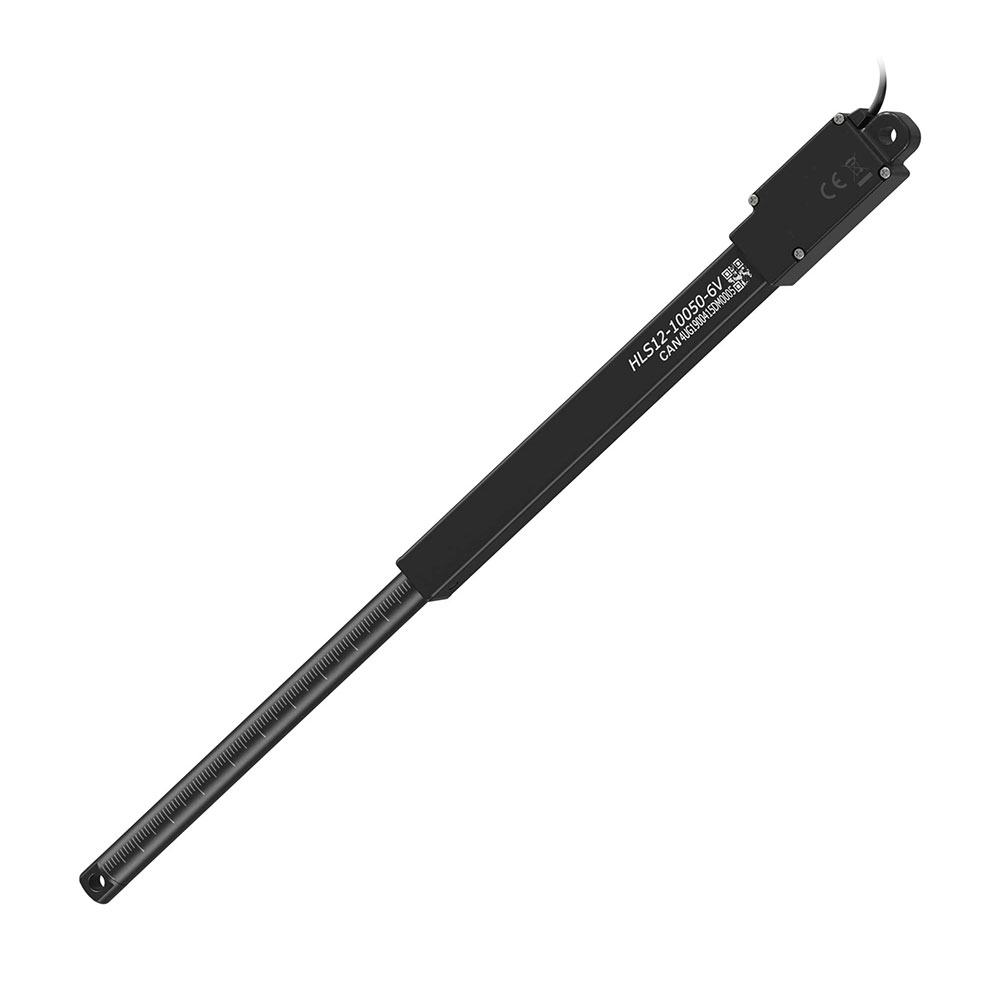

HLS12-10050-6V-CAN
100mm Stroke, 500:1 Gear Ratio, 5mm Lead, DroneCAN / CAN Control, Linear Actuator (6V)
With 100mm of travel and a 50:1 gear ratio, the HLS12-10050 is ideal for longer stroke applications requiring the fastest transit speeds.
Controlled using a traditional DroneCAN and CAN Bus servo signal, Hitec linear actuators provide optimized motion control for precise and powerful positioning. Whether your application demands a low-profile form factor, or extended linear throws, we have an actuator to suit your needs. Our linear actuators are popular for a myriad of uses including robotics and animatronics, as well as industrial mechanical applications. Programmable stroke and speed settings, power-off position stability, and a variety of mounting options, provide additional functionality and flexibility.
Additional force is available with the high gear ratios of our HLS12-100100, HLS12-100210 and HLS12-100380 versions.
Applications requiring less excursion will be better matched to our HLS12-30XX and HLS12-50XX series linear actuators.
Part #: 41012C
$124.99
| Linear | |
|---|---|
| Command Protocol |
CAN DroneCAN / UAVCAN v0.0 |
| Weight (g) | Min: 56.00 |
| Operating Voltage (V) | 6.0V |
| Motor Type | Cored Metal Brush |
| Circuit |
Digital |
| Lead Screw | 5 |
| Gear Ratio | 50:1 |
| No Load Speed (mm/s) | 50:1 |
| No Load Current (mA) | 25.0 |
| Maximum Efficiency Point |
Load (kg / N): 1.0 / 10
Speed (mm/s): 19.0 Current (mA): 200 |
| Pear Power Point |
Load (kg / N): 1.7 / 17
Speed (mm/s): 14.0 Current (mA): 300 |
| MAX FORCE |
Load (kg /N): 2.2 / 22
Speed (mm/s): 6.65 Current (mA): 400 |
| Stall Torque (N) | 2.5 / 25 |
| Max Static Force (N) | 200 |
| Stroke Spec (mm) | 100 |
| Repeatability (mm) | ± 0.5 |
| Max Side Load | 15 |

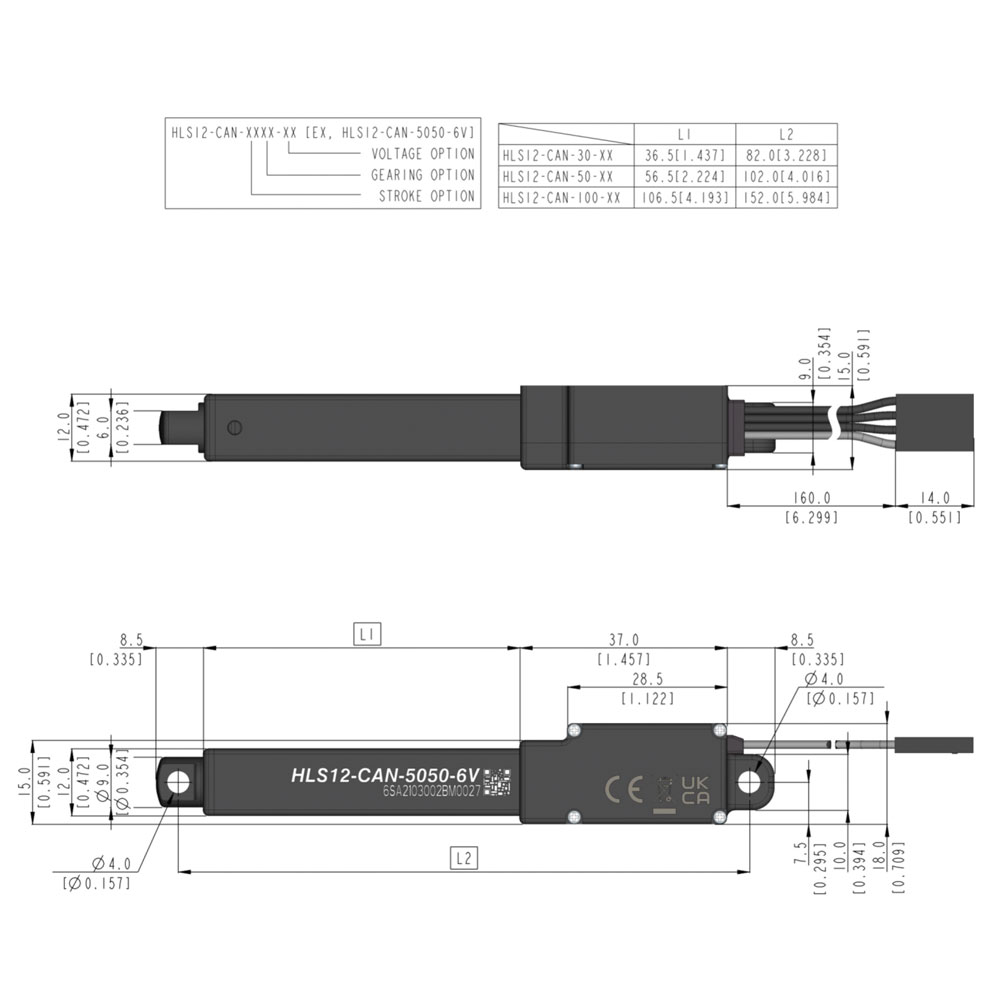

| Dimensions | 152.0 x 15.0 x 18.0 |
| Case Material | Engineering Plastic / Hardened Metal |
| Gear Material | Metal |
Contact Sales directly for accessories and/or replacement parts:
• Case Set
• Gear Set
• Horn Set
Actuator Sales
sales@hiteccs.com
• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset
