DB950SW
20mm, Brushless, Wide Voltage, Steel Gear Actuator (7.4V)
Our ultra-premium DB950SW answers the call for increased durability, providing the dependability and reliability industrial applications demand. Coupling 555 oz/in at 7.4V of torque and 0.14 sec/60° at 7.4V of speed, with its wide voltage range and brushless motor, this hardened steel gear, fully programmable actuator delivers the ultimate in high performance.
Part #: 36958S
$139.99
| Performance Specifications | |
|---|---|
| Command Protocol |
PWM PWM / TTL |
| Operating Voltage (V) |
Min: 4.80
Max: 7.40 |
| Weight (g) | Min: 68.00 |
| Stall Torque (kgf•cm / oz•in) |
Min: 40.0 / 555.5
Max: 40.0 / 555.5 |
| No Load Speed (sec/60°) |
Min: 0.23
Max: |
| Running Current (mA) |
Min: 350
Max: |
| Stall Current (mA) |
Min: 4,200
Max: |
| Circuit |
Digital |
| Rotation |
Programmable |
| Operating Voltage (V) |
Min: 4.80
Max: 7.40 |
| Torque Range |
Min (KG/CM): 40.00
Max (N/CM): 0.00 |
| Max Speed (SEC/60) | 0.14 |
| Physical Specifications | |
|---|---|
| Case Size (mm) | 20.00 |

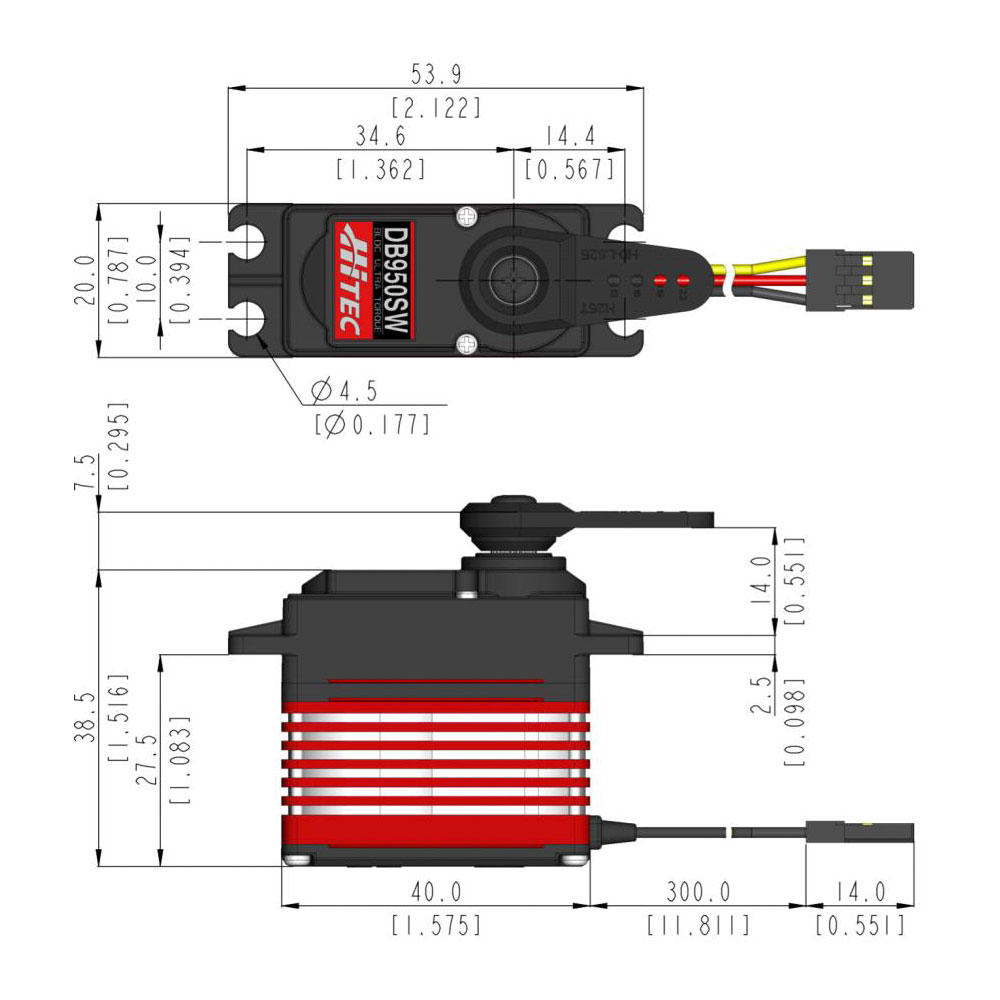

| Dimensions (mm) | 40.0 x 20.0 x 38.5 |
| Weight (g) | 68.00 |
| Motor Type | Brushless |
| Potentiometer |
Conventional |
| Gear Material | 1 Metal-Plastic & 3 Hardened Steel |
| Horn Gear Spline | 25T (Ø6) |
| Case Material | Engineer Plastic & Aluminum Heat Sink |
| IP Rating |
IP54 |
Contact Sales directly for accessories and/or replacement parts:
• Case Set
• Gear Set
• Horn Set
Actuator Sales
sales@hiteccs.com
• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset
Additional downloads can be found on our ACTUATOR RESOURCES page under our Support tab.
