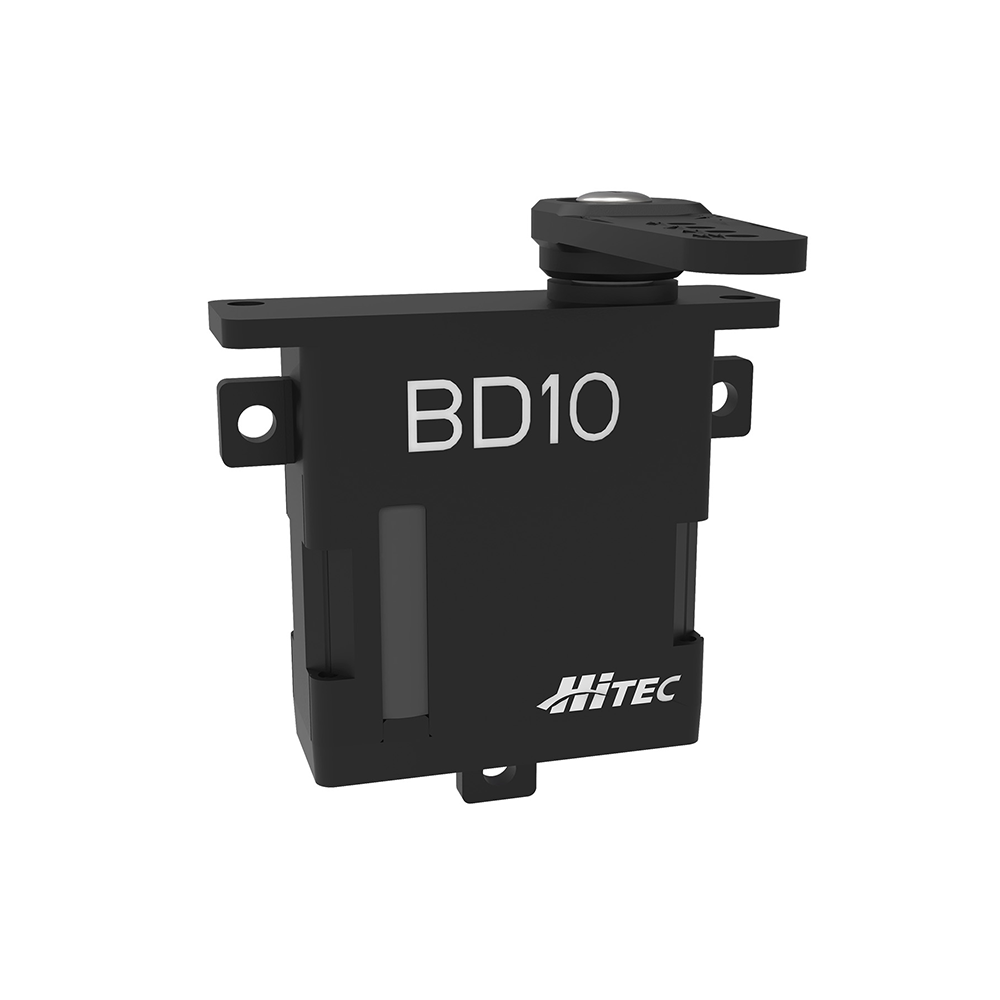

BD10BL-CAN-DroneCAN
10mm, Lightweight, Brushless, SEP Case Gear, Drone Actuator w/Magnetic Encoder (7.4V)
Engineered for sUAS performance, the BD10 Brushless Drone actuator combines a high-efficiency brushless motor with a precision magnetic encoder to deliver fast response, consistent torque, and reliable control in flight-critical applications. Built for longer life and lighter weight, it features a Lightweight Super Engineering Plastic (SEP) case and is rated to 500 hours MTTF and 1.2 million cycles, making it a dependable solution for demanding UAV operations.
Designed with scalability in mind, the BD10 integrates 32-bit digital programmability with full CAN and DroneCAN command protocol support for seamless system integration and advanced control. Its durable, sealed construction ensures consistent performance in harsh environments, delivering a high-speed, lightweight actuator optimized for precision, efficiency, and long-term reliability.
Part #: 31010C
$169.99
| Performance Specifications | |
|---|---|
| Command Protocol |
CAN DroneCAN / UAVCAN v0.0 |
| Operating Voltage (V) |
Min: 4.00
Max: 8.40 |
| Weight (g) | Min: 11.80 |
| Stall Torque (kgf•cm / oz•in) |
Min: 2.2 / 30.55 @ 6.0V
Max: 2.8 / 38.88 @ 7.4V |
| No Load Speed (sec/60°) |
Min: 0.12 @ 6V
Max: |
| Running Current (mA) |
Min: 120
Max: |
| Stall Current (mA) |
Min: 1,000
Max: |
| Circuit |
Digital |
| Rotation |
Programmable |
| Operating Voltage (V) |
Min: 4.00
Max: 8.40 |
| Torque Range |
Min (KG/CM): 2.80
Max (N/CM): 0.00 |
| Max Speed (SEC/60) | 0.09 |

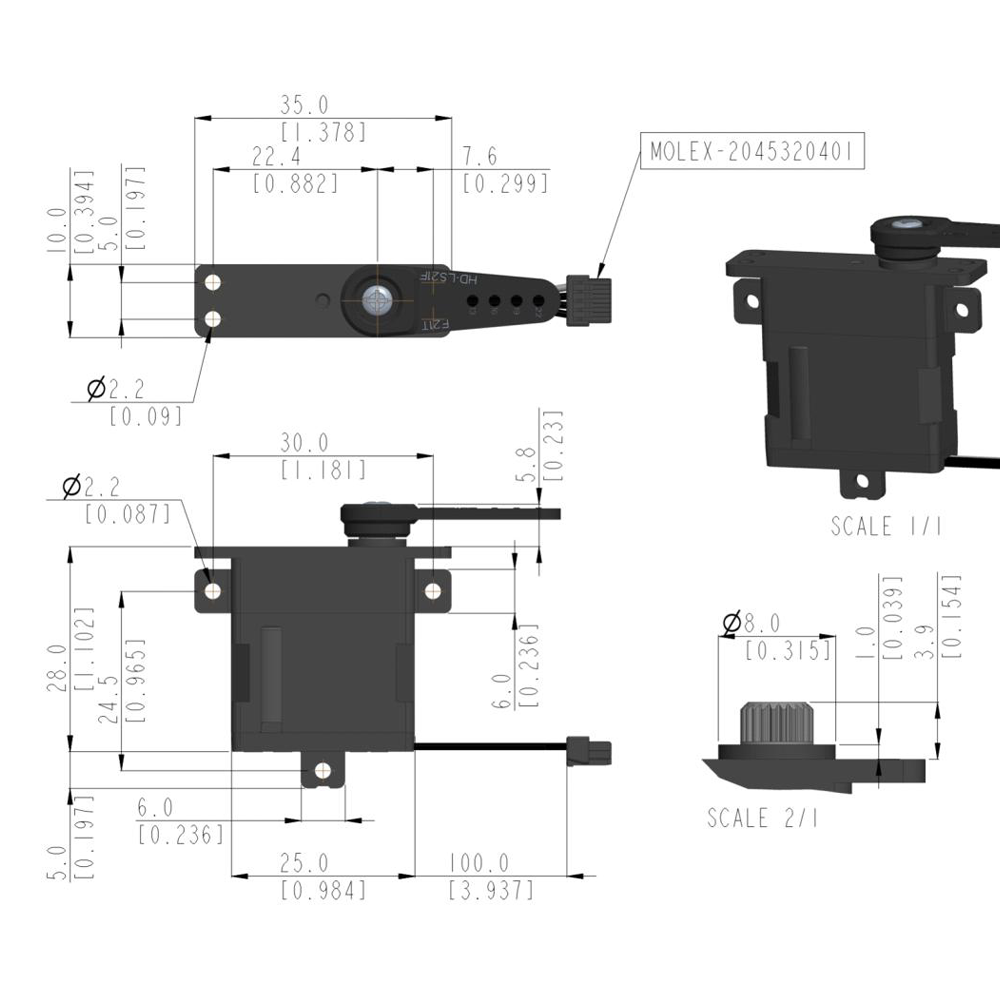

| Physical Specifications | |
|---|---|
| Case Size (mm) | 10.00 |
| Dimensions (mm) | 25.0 x 10.0 x 28.0 |
| Weight (g) | 11.80 |
| Motor Type | Brushless |
| Potentiometer |
Magnetic Encoder |
| Gear Material | Super Engineering Plastic (SEP) |
| Horn Gear Spline | 21T |
| Case Material | Super Engineering Plastic (SEP) |
| IP Rating |
N / A |
Contact Sales directly for accessories and/or replacement parts:
• Case Set
• Gear Set
• Horn Set
Actuator Sales
sales@hiteccs.com
• End Point Adjustments
• Direction
• Fail Safe
• Dead Band
• Speed (Slower)
• Soft Start Rate
• Overload Protection
• Data Save / Load
• Program Reset
| DroneCAN / UAVCAN v0.0 Command Protocol | Download |
|---|---|
| Wiki | |
|
Command Protocol Support |
More Information |
| Manual | |
|
CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 Servo Actuator Control Protocol Manual v2 (Updated: 09/05/23) |
Download Now |
| Library | |
|
Hitec CAN Servo Register Header (hitec-can-servo-reg-public.h) |
Download Now |
| Configuration App | |
| Download the following app to configure your actuator: CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 Configuration App – Ver. 2021.1.12.1 |
Download Now |
| Firmware | |
| CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 App Firmware | WiKi File Downloads |
| CAN(2.0A, 2.0B) Command Protocol | Download |
|---|---|
| Wiki | |
|
Command Protocol Support |
More Information |
| Manual | |
|
CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 Servo Actuator Control Protocol Manual v2 (Updated: 09/05/23) |
Download Now |
| Library | |
|
Hitec CAN Servo Register Header (hitec-can-servo-reg-public.h) |
Download Now |
| Configuration App | |
| Download the following app to configure your actuator: CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 Configuration App – Ver. 2021.1.12.1 |
Download Now |
| Firmware | |
| CAN(2.0A, 2.0B) & DroneCAN / UAVCAN v0.0 App Firmware | WiKi File Downloads |
